TV and Monitor Ceiling Mounts
(Click on model # to purchase)

View Shopping Cart  /  Checkout

Designer Series (For 13" to 27" TV's)

Features:
 0O- 10O adjustable tilt
360O swivel
Four wood screws included
Safety belt included
Black or white fused epoxy finish

The Designer Series ceiling mount attaches to a ceiling beam, two ceiling joists, or a solid *concrete ceiling. Three models are available to handle 13" to 27" TVs.  Ideal for corners and tight spots.

MODEL# **PRICE TV
SCREEN
SIZE		   DIMENSIONS   FINISH WEIGHT SHIP.
WEIGHT		 MAX.
LOAD
***X W
CDS 13 $ 98.00 13" - 15" 2.5 (635) 14 (356) BLACK N/A 19 (8.6) 125 (57)
CDS 13W $ 98.00 13" - 15" 2.5 (635) 14 (356) WHITE N/A 19 (8.6) 125 (57)
CDS 20 $ 119.00 19" - 20" 2.5 (635) 20 (506) BLACK N/A 21 (9.5) 125 (57)
CDS 20W $ 119.00 19" - 20" 2.5 (635) 20 (506) WHITE N/A 21 (9.5) 125 (57)
CDS 27 $ 130.00 25" - 27" 2.5 (635) 25 (635) BLACK N/A 23 (10.4) 125 (57)
CDS 27W $ 130.00 25" - 27" 2.5 (635) 25 (635) WHITE N/A 23 (10.4) 125 (57)
NOTES:



**
***
 		 ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.)
MATERIAL: COLD ROLLED STEEL AND STEEL TUBING
RANDOM HOLE PATTERN IN TV SUPPORT TRAY OMITTED FOR CLARITY.
LIST PRICE SHOWN, SUBJECT TO CHANGE WITHOUT NOTICE.
DIMENSION X REFLECTS TWO-POSITION TV SUPPORT TRAY IN THE SETBACK POSITION. WHEN SUPPORT TRAY IS  IN THE FORWARD POSITION, X= 4"(102MM)

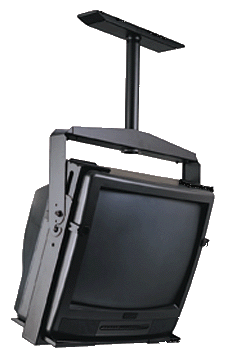

Jumbo 2000  (For 13" to 42" TV's)

Features:
Models available for 13" to 42" standard TVs and monitors 360O swivel action
Models available for 25" to 42" wide aspect ratio (16:9) sets Top and front roll out protection
Easy assembly and quick connect installation Exceptional strength and stability
Adjustable tilt (0O to 30O) for optimal viewing Black fused epoxy finish

Ideal for commercial and educational applications, the Jumbo 2000TM ceiling mount offers an attractive
low profile design. Integrated front and top rollout protection hardware allow for safe tilt up to 30O


JUMBO 2000 MOUNTS FOR STANDARD MONITORS
MODEL# *PRICE   MONITOR
**SIZE		   W H D WEIGHT SHIPPING
WEIGHT
JMC 2630 $ 202.00 13"-17" 13.5-21
(343-533)		 11.4-17.7
(290-450)		 10
(254)		 27.3
(12.5)		 34
(15.4)
JMC 2640 $ 202.00 19"-21" 18-26
(457-660)		 14.2-20.4
(361-518)		 10
(254)		 30
(13.7)		 37
(16.8)
JMC 2640D $ 230.00 19"-21" 18-26
(457-660)		 14.2-20.4
(361-518)		 14
(356)		 32.7
(14.9)		 39
(17.6)
JMC 2650 $ 202.00 25"-27" 24-31
(610-787)		 19.2-25.4
(488-645)		 10
(254)		 35.2
(16)		 42
(19)
JMC 2650D $ 230.00 25"-27" 24-31
(610-787)		 19.2-25.4
(488-645)		 14
(356)		 38.4
(17.5)		 45
(20.4)
JMC 2660 $ 230.00 30"-36" 29-36
(737-914)		 24.2-30.4
(614-772)		 14
(356)		 36.2
(16.5)		 49
(22.2)
JMC 2670 $ 255.00 37"-42" 34-41.3
(864-1050)		 29.2-35.4
(742-900)		 14
(356)		 49.8
(22.7)		 56
(25.4)
JUMBO 2000 MOUNTS FOR WIDE ASPECT RATIO MONITORS
MODEL# *PRICE   MONITOR
**SIZE		   W H D WEIGHT SHIPPING
WEIGHT
JMC 2655 $ 202.00 25"-27" 24-31
(610-787)		 14.2-20.4
(361-518)		 14
(356)		 37.3
(17.5)		 41
(18.6)
JMC 2665 $ 230.00 27"-36" 29-36
(737-914)		 19.2-25.4
(488-645)		 14
(356)		 17.1(19.1) 45
(20.4)
JMC 2675 $ 255.00 35"-42" 34-41.3
(864-1050)		 24.2-30.4
(614-772)		 14
(356)		 46.3
(21.1)		 54
(24.5)
  NOTES:
  ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.)
  MATERIAL: COLD ROLLED STEEL, FINISH: BLACK FUSED EPOXY
  MAX. LOAD FOR ALL MODELS: 300 LBS. (136 KG.)
  DEPTH OF MONITOR WILL EXCEED DEPTH OF SUPPORT TRAY [D] AND WILL OVERHANG THE BACK EDGE.
* LIST PRICE SHOWN, SUBJECT TO CHANGE WITHOUT NOTICE
** MONITOR SIZE USED AS A GENERAL GUIDE. TO DETERMINE CORRECT MODEL TO ORDER MEASURE YOUR SET.
  MODELS JMC 2655, 2660, 2665, 2670 AND 2675 SHIP IN TWO CARTONS

Universal CRT Mount (For 14" to 17" CRT Monitors)

Features:
Adjustable tilt (0O to 20Oor 20O to 40O) All steel construction
Swivel action Black fused epoxy finish
Wood screws included for wood joist ceilings

Used for mounting small CRT monitors, this bracket features a universal, adjustable clamp design that accommodates most 14"-17" monitors. All mounting hardware is included for a flush mount installation.

MODEL# *PRICE MONITOR
SCREEN SIZE		   INSIDE DIMENSIONS   WT. SHIP
WT.		 MAX.
LOAD
X W H
IMC 18 $ 179.00 14" - 17" 4.4- 5.8
(112) (147)		 15.5 - 17
(318) (432)		 11.9  - 15.5
(302)  (394)		 14.5
(6.6)		 16
(8)		 50
(22.7)
NOTES:
ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.)
MATERIAL: COLD ROLLED STEEL
FINISH: BLACK FUSED EPOXY
*LIST PRICE SHOWN, SUBJECT TO CHANGE WITHOUT NOTICE
