Wall-mount Racks & Shelves

from $ 1,588.00

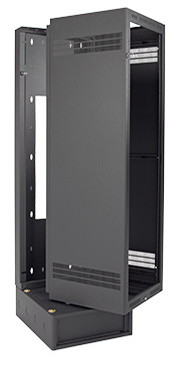

LWBR: wall rack with base

Description: EIA compliant swing-open, wall-mount rack with support base.

Model Series: LWBR

• Cabinet pivots smoothly on stainless steel ball transfers set into base.
• Base provides additional 4 rack units for electronic equipment or optional utility drawer.
• Single-release loop-style grasp
• Slam-latch closure.
• Open top with integral rack rail on E.I.A. spacing to support optional 19" EIA panels.
• Front key-lock secures cabinet to backbox while allowing side-by-side installations.
• Welded 16-gauge steel construction.
• Black wrinkle powder epoxy finish.
• Rack units: 24, 35, 40, 44
• Depth: 22", 28", 32",
• Made in USA with 100% certified US steel



Click each Model for Data Sheet

Model No.
Load Capacity (lbs)
RU
OA Depth (in)
Cabinet Depth (in)
OA Height (in)
OA Width (in)
LWBR-2428
500
24
28.4
23.53
57.77
23.06
LWBR-2432
500
24
32.4
27.53
57.77
23.06
LWBR-3528
500
35
28.4
23.53
77.03
23.06
LWBR-3532
500
35
32.4
27.53
77.03
23.06
LWBR-4022
500
40
22.4
17.53
85.78
23.06
LWBR-4028
500
40
28.4
23.53
85.78
23.06
LWBR-4032
500
40
32.4
27.53
85.78
23.06
LWBR-4428
500
44
28.4
23.53
92.78
23.06




from $ 572.00

LWR: swing-open wall rack

Description: Heavy duty, EIA compliant, sectional swing rack for wall-mount applications.

Model Series: LWR

• Sectional rack includes 4.7”D backbox and 14” or 18”D mounting section.
• Backbox has
10” square opening in rear, removable knockout panels, lacing points, and provisions to attach board-mounted accessories. Two side locks are keyed differently than (optional) front door.
• Mounting section has
1-pair of adjustable rails, integral rails at top and bottom, knockouts for wireless, vented sides, and panel hardware.
• Black wrinkle powder epoxy finish.
• Optional front door.
• Backbox and mounting section are packaged separately.
• Made in USA with 100% certified US steel
• Depth: 19"D; 23"D

Click each Model for Data Sheet

Model No.
Load Capacity (lbs)
RU
OA Depth (in)
Useable Depth (in)
OA Height (in)
OA Width (in)
LWR-719
125
7
19.05
16
18.38
23.06
LWR-1019
150
10
19.05
16
23.63
23.06
LWR-1219
150
12
19.05
16
27.13
23.06
LWR-1619
200
16
19.05
16
34.13
23.06
LWR-2119
250
21
19.05
16
42.88
23.06
LWR-2419
300
24
19.05
16
48.13
23.06
LWR-3519
300
35
19.05
16
67.38
23.06
LWR-723
125
7
23.05
20
18.38
23.06
LWR-1023
150
10
23.05
20
23.63
23.06
LWR-1223
150
12
23.05
20
27.13
23.06
LWR-1623
200
16
23.05
20
34.13
23.06
LWR-2123
250
21
23.05
20
42.88
23.06
LWR-2423
300
24
23.05
20
48.13
23.06
LWR-3523
300
35
23.05
20
67.38
23.06
 Model No.  Load Capacity (lbs) [kg]  RU  OA Depth (in) [mm]  OA Height (in) [mm]  OA Width (in) [mm]
LWR-1228 150 [68] 12 28.05 [712] 27.125 [689] 23.06 [586]
LWR-1628 200 [136] 16 28.05 [712] 34.125 [867] 23.06 [586]
LWR-2428 300 [136] 24 28.05 [712] 48.125 [1222] 23.06 [586]
LWR-1232 150 [136] 12 31.87 [809] 27.125 [689] 23.06 [586]
LWR-1632 200 [136] 16 31.87 [809] 34.125 [867] 23.06 [586]
LWR-2432 300 [136] 24 31.87 [809] 48.125 [1222] 23.06 [586]



from $ 485.00

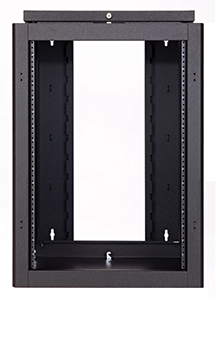

LWSR: swing-open wall rack (fixed-rail)

Description:

EIA complaint swing wall-mount rack with fixed-position front mounting rails is an economical choice for applications that won't need to reposition equipment from the front of the rack.

Model Series: LWSR

• Ideal for applications that won't need to re-position equipment front-to-back.
• Side vents.
• Large opening in backbox.
• Optional front door.
• Black wrinkle powder epoxy finish.
• What's the difference
• Made in USA with 100% certified US steel
• Rack units: 7, 10, 12, 16
• Depth: 22"

Click each Model for Data Sheet

Model
No.
RU* Mtg. Section Depth
in. [mm]
Rack Height
in. [mm]
Height
with Backbox
in. [mm]
LWSR-722 7 19.06 [484] 16.63 [422] 20.08 [510]
LWSR-1022 10 19.06 [484] 21.88 [556] 25.33 [643]
LWSR-1222 12 19.06 [484] 25.38 [645] 28.83 [732]
LWSR-1622 16 19.06 [484] 32.38 [822] 35.83 [910]





from $ 386.00



LWER: stationary wall rack

Description:

Stationary wall rack for small installations that require basic access to equipment. Ideal for small offices, schools and retail applications. EIA compliant. specs

Model Series: LWER

Features:

• Very economical wall rack for small system installations.
• Welded 16-ga. steel
• 1-pair of fixed mounting rails
• Vented sides
• Sturdy wall bracket with mounting slots and knockouts.
• Black wrinkle powder epoxy finish
• Optional front door, rear rails, rail conversion bracket
• Made in USA with 100% certified US steel
• Rack units: 4, 7, 10
• Depth: 18.18"

Click each Model for Data Sheet

Model
No.
Load Capacity
lbs. [kg.]
RU* Overall Depth **
in. [mm]
Overall Height
in. [mm]
LWER-718 150 [68] 7 18.18 [462] 16.63 [422]
LWER-1018 150 [68] 10 18.18 [462] 21.88 [556]




from $ 558.00

LWTR: tilt-open wall rack

Description: EIA compliant wall rack with tilt-down access to equipment mounted in vertical orientation.

Model Series: LWTR

Features:

• Suitable for installation in brick, concrete block or stud wall construction.
• Backbox (29” x 29”) for surface model is flush with keyhole slots on 16” centers.
• Backbox (26” x 26”) for recessed model requires 4” depth.
• Both styles mount equipment 19”W x 5.25”H x 17.5”D
• Backbox and frame are packaged separately.
• Made in USA with 100% certified US steel
• Network grey powder epoxy finish.
• Useable rack unit space: 3U

Click each Model for Data Sheet

Model No.
Mount
RU
OA Depth (in)
Projection from Wall
OA Height (in)
OA Width (in)
LWTR-3R
recessed
3
5.81
1.81
29.06
29.06
LWTR-3S
surface
3
5.81
5.81
29.125
29.125


from $ 1,095.00

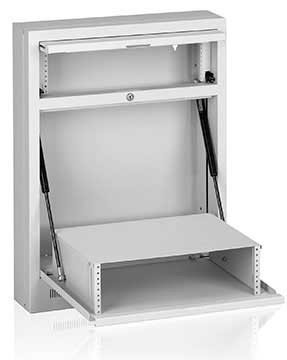

LWTCR: tilt-open wall rack (with dampers)

Description: EIA compliant wall rack with tilt-down access to equipment mounted in vertical orientation. Includes dampers for slow release.

Model Series: LWTCR

Features:

• Oil-filled dampers for smooth operation
• 1" raceway on each side
• Surface-mount or recessed
• Top compartment with pocket door for storage (or mount optional 19" device panels on hinge for easy service access).
• Made in USA with 100% certified US steel
• Network grey powder epoxy finish
• Useable rack unit space: 3U

Click each Model for Data Sheet

Model No.
Mount
RU
Projection from Wall
OA Height (in)
OA Width (in)
LWTCR-3R
recessed
3
1.813
35.063
27.375
LWTCR-3S
surface
3
6.063
32.063
24.375



from $ 145.00


WS: welded wall shelf

Description: Heavy duty welded shelf for wall-mount use.

Model Series: WS

Features:

• Formed from 16-gauge steel
• Load capacity of 200 lbs. when properly installed
• Rear keyhole slots
• Combination knockouts on top, bottom and sides
• Black powder epoxy finish
• Made in the USA with 100% certified US steel



Click each Model for Data Sheet

Model No.
Load Capacity (lbs)
OA Depth (in)
OA Height (in)
OA Width (in)
WS21-17
200
17
15
21



from $ 80.00



FS: flat-ship wall shelf

Description: Ready-to-install, steel wall shelf ships flat and folds out for use; no assembly required.

Model Series: FS

Features:

• Mounts on 16” stud centers.
• Load capacity: 100 lbs.
• Formed steel construction without welds
• Mounts in either direction
• Center opening for wire access or placement over outlets or fixtures.
• Pre-punched cable lacing and accessory mounting holes.
• Black powder epoxy finish
• Made in USA with 100% certified US steel

Click each Model for Data Sheet

Model No.
Load Capacity (lbs)
OA Depth (in)
OA Height (in)
OA Width (in)
FS18-14
100
14
8.19
18.22
FS18-16
100
16
8.19
18.22
FS18-20
100
20
8.19
18.22
