Stand-alone Floor Racks

equipment rack



from $ 679.00



Click for Data Sheet

32"D specs;
27"D specs;
22"D specs

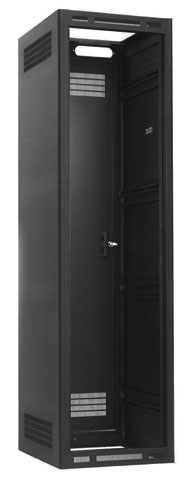

LER: enclosed rack

Description: 19” EIA rack with welded sides and recessed rear door.

Model Series: LER

Features:

• All welded construction
• Adjustable rails
• Welded sides with vents at top/bottom
• Combination knockouts (top/rear)
• Recessed vented rear door with key lock
• Black wrinkle finish
• UL Listed
• Optional front door: LFD-series
• Made in the USA with 100% US steel
• Width: 23.06"
• Rack units: 18, 21, 24, 35, 40, 44
• Depth: 32"D specs; 27"D specs; 22"D specs

LER–BAV (bundled accessories option): The LER is also available with an accessory bundle (see model numbers with "BAV" suffix on bundled rack specs). Bundled accessories are not installed but are individually packaged and shipped with the rack.

LER–IAV (installed accessories option): The LER can also be ordered ready-to-use with a set of pre-installed accessories

Model No.
Load Capacity (lbs)
RU
OA Depth (in)
Useable Depth (in)
OA Height (in)
OA Width (in)
LER-1822
3150
18
22
19.34
37.63
23.06
LER-2122
3150
21
22
19.34
42.88
23.06
LER-2422
3150
24
22
19.34
48.13
23.06
LER-3522
3150
35
22
19.34
67.38
23.06
LER-4022
3150
40
22
19.34
76.13
23.06
LER-4422
3150
44
22
19.34
83.13
23.06
LER-1827
3150
18
27
24.34
37.63
23.06
LER-2127
3150
21
27
24.34
42.88
23.06
LER-2427
3150
24
27
24.34
48.13
23.06
LER-3527
3150
35
27
24.34
67.38
23.06
LER-4027
3150
40
27
24.34
76.13
23.06
LER-4427
3150
44
27
24.34
83.13
23.06
LER-2432
3150
24
32
29.34
48.13
23.06
LER-3532
3150
35
32
29.34
67.38
23.06
LER-4032
3150
40
32
29.34
76.13
23.06
LER-4432
3150
44
32
29.34
83.13
23.06







from $ 676.00

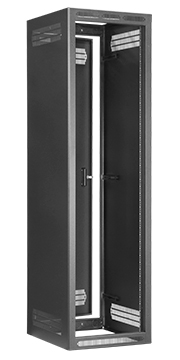

LFR: Fixed Rail Rack

The economical LFR Series is a stand-alone rack with welded sides and fixed-position front mounting rails. It is ideally suited for installations that mount electronics with rails set in the fully forward position. With short (8 in. deep) rear rail supports that add flexibility to the placement of optional rear rails, vertical cable managers or power strips, the unique design combines the economy of a fixed-rail rack with the flexibility of an adjustable rail rack.

  • Welded 16-gauge steel with 14-gauge base is reinforced at loadbearing junctions.
  • Black wrinkle powder epoxy finish.
  • Rear door and side panels have vents designed to accept optional single fan kits for spot cooling.
  • Top features vents or a configurable 7U opening, depending on model selected.









Click each Model for Data Sheet

Model No.
Load Capacity (lbs)
RU
OA Depth Ext (in)
Useable Depth Int (in)
OA Height Ext (in)
OA Width Ext (in)
LFR-2122 (specs)
500
21
22  [559]
19.34  [491]
42.875  [1089]
23.06  [586]
LFR-2422 (specs)
500
24
22  [559]
19.34  [491]
48.125  [1222]
23.06  [586]
LFR-3522 (specs)
1600
35
22  [559]
19.34  [491]
67.375  [1711]
23.06  [586]
LFR-3527 (specs)
1600
35
27 [686]
24.34 [618]
67.375  [1711]
23.06  [586]
LFR-4027 (specs) 2000 40 27 [686] 24.34 [618] 76.125  [1934] 23.06  [586]
LFR-4427 (specs) 2000 44 27 [686] 24.34 [618] 83.125  [2111] 23.06  [586]






from $ 2,103.00

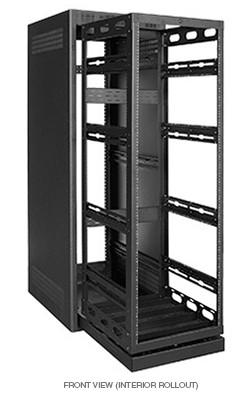

LHR: host rack

Definition: EIA compliant, two-part design combines an exterior cabinet (with welded sides) with an interior rollout/rotating rack.

Model Series: LHR

Features:

Exterior cabinet has welded sides, open front, open rear, and 10U top opening.
Interior rack has post-style mounting rails tapped 10-32, side/rear braces for strength, and caster base. It swivels on stainless steel ball transfers that support loads up to 750 lbs.
• Interior rack assembly can be removed from external cabinet for shop wiring.
• Compound knockouts for cables
• Optional front door, rear access cover (see spec sheet for model numbers)
• 100% certified US steel
• Made in USA
• Rack units: 24, 35, 44
• Useable depth: 26", 36"



Click each Model for Data Sheet

Model No.
Load Capacity (lbs)
RU
OA Depth Ext (in)
Useable Depth Int (in)
OA Height Ext (in)
OA Width Ext (in)
LHR-2432 (specs)
750
24
32.88
26
53.86
24
LHR-3532 (specs)
750
35
32.88
26
73.27
24
LHR-4432 (specs)
750
44
32.88
26
89.02
24
LHR-4442 (specs)
750
44
42.88
36
89.02
24
