Seismic-rated racks

Seismic-certification for floor racks falls into two basic categories: 

CATEGORY 1: ANCHORAGE: provisions that meet life safety requirements for protecting building occupants from the danger of racks falling over or obstructing egress routes during a seismic event. This certification is required by the California Building Code (CBC) and International Building Code (IBC) for installations in moderate to high seismic regions. It’s also required by the Office of Statewide Health Planning and Development for California (OSHPD).

CATEGORY 2: ANCHORAGE & RACK: structure provisions that meet life safety requirements (listed above) plus those for “Essential Facilities” where the survival and operability of critical equipment, following a seismic event, is required. This more stringent certification (ANCHORAGE & RACK) is required by the IBC for installations in moderate and high seismic regions that are deemed “Essential” or as “Designated Seismic Systems” and have an Importance Factor of 1.5 (including medical, fire, police, telecommunications and other critical public, private, government and institutional facilities).

AVLELEC Racks: California Building Code Seismic Certification (CBC-2007, CBC-2010)
AVLELEC Racks: California Office of Statewide Health Planning and Development Seismic Certification (OSHPD)
AVLELEC Racks: International Building Code Seismic Certification (IBC)


from $ 1,087.00

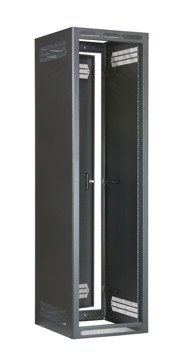

LSER: seismic-rated rack (enclosed sides, adj. rails)

Definition: Seismic rated rack for ANCHORAGE or ANCHORAGE & RACK qualification. Essential Facility installations may also require the IBC Qualifier Brace option (see spec sheet for description and model numbers).

Model Series: LSER

Features:

• Adjustable rails
• Welded sides (top/bottom vents)
• Rear door (top/bottom vents)
• Optional front door can be ordered separately.
• All-welded construction
• UL-Listed, EIA compliant
• Made in USA with 100% certified US steel
• Seismically qualified up to 1200 lbs., dependent upon model
• Black wrinkle powder epoxy finish.
• Includes PE certified document package for IBC, CBC, OSHPD
• 32"D racks
• 27"D racks

Click each Model for Data Sheet

Model No.
RU
OA Depth (in)
Useable Depth (in)
OA Height (in)
OA Width (in)
LSER-3527
35
27
24.34
67.38
23.06
LSER-4027
40
27
24.34
76.13
23.06
LSER-4427
44
27
24.34
83.13
23.06
LSER-3532
35
32
29.34
67.38
23.06
LSER-4432
44
32
29.34
83.13
23.06





from $ 1,347.00

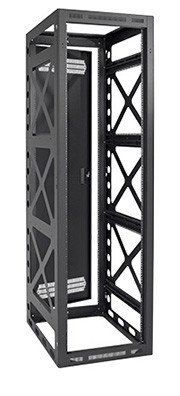

LSGR: seismic-rated rack (gangable, adj. rails)

Definition: Gangable seismic rated rack for ANCHORAGE or ANCHORAGE & RACK qualification. Essential Facility installations may also require the IBC Qualifier Brace option (see spec sheet for description and model numbers).

Model Series: LSGR Features:



• Open sides facilitate access to wire and cable bundles
• All-welded construction, 100% U.S. steel
• Includes plentiful, pre-drilled holes for wire looming
• Black wrinkle powder epoxy finish
• Includes PE certified document package for IBC, CBC, OSHPD
• Made in USA with 100% certified US steel
• Optional front door, side panels
• 36"D racks
• 32"D racks
• 27"D racks
• 22"D racks


Click each Model for Data Sheet

Model No.
RU
OA Depth (in)
Useable Depth (in)
OA Height (in)
OA Width (in)
LSGR-4027
40
27
24.34
76.18
23.06
LSGR-4427
44
27
24.34
83.13
23.06
LSGR-4032
40
32
29
76.18
23.06
LSGR-4432
44
32
29
83.13
23.06
LSGR-4036
40
36
33.34
76.18
23.06
LSGR-4436
44
36
33.34
83.13
23.06
