Gangable Floor Racks

from $ 1,070.00

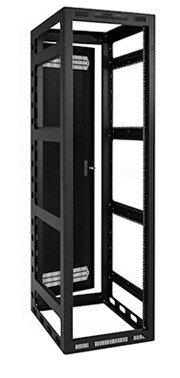

LGR: gangable rack

Description: 19" EIA gangable floor rack with open sides/top/bottom to facilitate wire and cable management; recessed rear door.

Model Series: LGR

Features:

• All welded construction
• Adjustable rails
• Plentiful pre-drilled holes for looming
• Combination knockouts (top/rear)
• Recessed vented rear door with key lock
• Black wrinkle finish
• UL Listed
• Made in USA with 100% certified US steel
• Optional side panels, front door
• Width: 23.06"
• Rack units: 24, 35, 40, 44
• Depth: 42"D; 36"D ; 32"D; 27"D; 22"D

Click on each Model for Data Sheet

Model No.
Load Capacity (lbs)
RU
OA Depth (in)
Useable Depth (in)
OA Height (in)
OA Width (in)
LGR-4022
3150
40
22
19.34
76.18
23.06
LGR-4422
3150
44
22
19.34
83.13
23.06
LGR-2427
3150
24
27
24.34
48.13
23.06
LGR-3527
3150
35
27
24.34
67.38
23.06
LGR-4027
3150
40
27
24.34
76.18
23.06
LGR-4427
3150
44
27
24.34
83.13
23.06
LGR-3532
3150
35
32
29
67.38
23.06
LGR-4032
3150
40
32
29
76.18
23.06
LGR-4432
3150
44
32
29
83.13
23.06
LGR-4036
3150
40
36
33.34
76.18
23.06
LGR-4436
3150
44
36
33.34
83.13
23.06
LGR-4042
3150
40
42
39
76.18
23.06
LGR-4442
3150
44
42
39
83.13
23.06

from $ 330.00

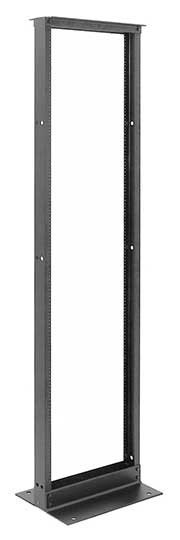

LRR: relay/network rack

Description: 19" EIA relay or network rack for voice/data cables where full access to electronics is required.

Model Series: LRR

Features:

• 3"W vertical channels formed from 11-ga. steel
• Channels include mounting holes tapped 10-32 on EIA mounting centers
• Base/Top angle supports feature two-piece aluminum construction
• Base has four drilled holes to secure rack to floor (for code compliance)
• Black powder finish
• Ships unassembled
• Made in USA
• Width: 20.25"
• Rack units: 38, 45
• Depth at base: 15" specs





Click each Model for Data Sheet

Model No.
RU
OA Depth (in)
OA Height (in)
OA Width (in)
LRR-3815
38
15
72
20.25
LRR-4515
45
15
84
20.25
