PURCHASE AVLELEC.COM HEAD-END MASKING SYSTEM (HE-1) ON-LINE $ 3,962.00
The Head-End System contains the Main Soundmasking Amplification equipment only (add speakers below)
HE-1 (Head-End-1) Includes:
Click on the Photo(s) for an Adobe PDF Cut-sheet

Quantity Model Number Description Click on Photo for LIterature

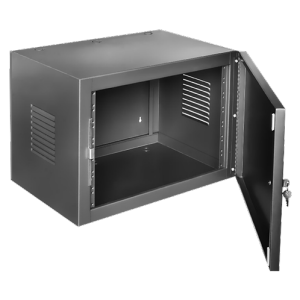

1 RACK
HE1-12

Equipment Rack may be wall or shelf mounted and comes pre-wired with equipment installed including Electrical & Vent Panels, Operation Manual with AutoCAD Schematic.

  HE-1 Equipment Rack
1

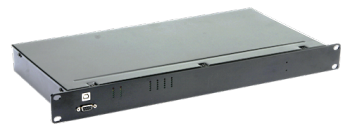

SOUNDMASKING
GENERATOR

Soundmasking Generator produces a digital output signal for sound masking that is pink noise (equal energy / octave) or white noise (equal energy / frequency).
1 WHITE/PINK NOISE
SOUND MASKING EQUALIZER

1/3 octave graphic equalizer to fine-tune your soundmasking system - to sound like your HVAC system.


HE-1 Soundmasking Generator
1 BSPK1000

1000ft of 18AWG Signal Speaker Cable (Plenum Rated/Teflon Jacket)

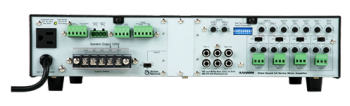

1 SOUND MASKING
MIXER / AMPLIFIER

125 watt Sound masking
5 Channel Mixer/Amplifier
5 Year Equipment Warranty
Channel Presedence to Integrate Telephone Paging, Fire Alarm Chirp, Soundmasking Music
www.SoundmaskingMusic.com - Zoned Music in Bathrooms, Cafeteria, Reception Area


HE-1 Mixer Amplifier


$ 3,962.00

ADD MASKING SPEAKERS W/ MOUNTING HARDWARE

Speakers for Masking for Music and Paging
Model SM810-BR
Masking with Paging
Model SM820-BR
Masking with Music and Paging
Model SM410A-BR
Masking with Music and Paging
(Wide Dispersion)
Model SM-Bridge Rails
Additional Soundmasking Speakers Additional Soundmasking Speakers Additional Soundmasking Speakers
8" Dual Cone Speaker, 15 Watts,
117 Hz - 6.9 kHz - 115 Degree Dispersion
70V Transformer, Mounting Hardware
8" Coaxial Speaker, 50 Watts,
60 Hz - 16.5 kHz - 100 Degree Dispersion
70V Transformer, Mounting Hardware
4" Single Cone Speaker, 15 Watts,
85 Hz - 12.65 kHz - 170 Degree Dispersion
70V Transformer, Mounting Hardware

Ceiling Tile Rails to Stop Ceiling Tile Sag

$ 156.00
$ 188.00
$ 145.00
$ 26.00
Add Soundmasking, Paging, Soundmasking Music Zones
Soundmasking, Paging, Backround Music - Mixers and Power Amplifiers
AVLELEC-Mix 1 AVLELEC-MA-30 AVLELEC-MA-60 AVLELEC-MA-125
Data Sheet Installation Manual
Data Sheet Installation Manual
Data Sheet Installation Manual
Data Sheet Installation Manual

MMiMixer/preamplifier features six channels, each with a microphone input at a screw terminal and an Aux input at an RCA jack. A seventh channel (Aux only) has a front panel switch to select one of two rear panel Aux input jacks.

?30W mixer/amplifier with 4 ohms, 8 ohms, 25V and 70V speaker outputs at screw terminals. Powered by 120VAC 60Hz, the main AC input is protected by a circuit breaker in back. An unswitched AC outlet in back is protected by a separate circuit breaker. Front panel features three input channels (MIC/TEL, PROGRAM, AUX1), plus BASS control, TREBLE control, power active LED, and output level LED ?60W ?mixer/amplifier powered via switchable 115 or 230VAC @ 50/60Hz or 24VDC. Includes five channel volume controls, treble and bass controls, master volume control, main power switch, and LED output level display ban 125W ?mixer/amplifier powered via switchable 115 or 230VAC @ 50/60Hz or 24VDC. Includes five channel volume controls, treble and bass controls, master volume control, main power switch, and LED output level display bank
$ 465.00 $ 465.00 $ 725.00 $ 880.00

Up-To 120 Speakers on the HE-1
(total of 48,000 sq ft coverage)
Expandable with additional amplification

Our Quick Cost Calculator will determine the quantity of speakers required for your area.
