Click on picture for documentation
1 - KT300 - Card Access Controller ( 2 - Doors )
2 - Card Readers ( Prox, Mag, or Barcode)
1 - EntraPASS Special Edition Software
Click for EntraPASS Global Edition Certificate
Our system is in General Dynamics, Lima, OH. - 7- Federal Penitentiaries, Caesars Casino Lake Tahoe, Alcoa Aluminum, Cutrale Citrus Florida, West Coast Health Club New Jersey, R.R. Donnelley Virginia, LaCascata Homeowners Association, Continental Dental Philippines - and tons more
KT300 Access 2-Door Kit Quantity Desired:
Technical Statement: Our KT300 works in stand-alone mode
KT300/128 holds 8,000 cards and 5,000 events
KT300/512 holds 56,000 cards and 18,000 events
Both have an 8 Hour Battery Backup
Expandable to an unlimited amount of Doors and Cards
Add: $ 2,577.00 for additional set of 2 Readers and Controller
1 - KT100 - Card Access Controller ( 1 - Turnstile or Door )
1 - Card Readers ( Prox, Mag, or Barcode)
1 - EntraPASS Special Edition Software
Click for EntraPASS Global Edition Certificate
KT100 Access 1-Door Kit Quantity Desired:
Technical Statement: Our KT100 works in stand-alone mode
KT100/128 holds 6,144 cards and 4,000 events
Add an additional Reader $ 400.00
Expandable to an unlimited amount of doors and readers
AutoCAD Installation Documentation
Device Location Detail Drawings
with Cable Routing and
Electrical Requirements
(you email us your floor plan
we will place the equipment )
Point-to-Point Schematic
Includes Cable Coloring and Numbering
(makes wiring EASY!)
Click on the links for PDF examples
(these are from previous projects)
Multi-Door Controller Kits provide all the necessary hardware components in one box, from powerful KT-300 controllers to readers and keytags, to complete or extend your access control system.
Perfect for Growing Businesses

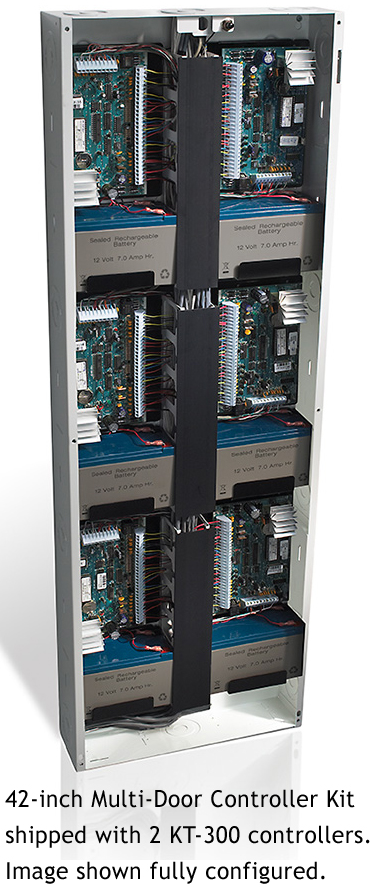

The Multi-Door Controller Kits are available in two enclosure size models: a 28-inch enclosure that can accommodate up to four KT-300 controllers and a 42-inch enclosure that can accommodate up to six KT-300 controllers. You can easily add controllers to each enclosure to reach its respective configuration (8-door or 12-door).
Organize and Install Controllers Efficiently
The Multi-Door Controller Kits are ideal for large applications where space, time and budget are important considerations. Rather than having to install separate enclosures for each KT-300, the Multi-Door Controller Kits enable you to mount multiple KT-300 controllers inside a single enclosure. This is a valuable benefit for sites with limited wall space.
Multi-Door Expansion Kit
For added convenience, our Multi-Door Expansion Kit lets you expand your access control system in 4-door increments. The Multi-Door Expansion Kit provides the basic peripherals to expand your system such as additional KT-300 controllers, transformers, rechargeable batteries and more all with the convenience of one model number.
Key Features
- Controls up to 8 or 12 doors from one enclosure (depending on model size enclosure)
- Cost-effectively consolidate multiple KT-300 controllers in a single enclosure to provide a streamlined installation
- Supports all www.AVLELEC.com EntraPass Special Edition, EntraPass Corporate Edition and EntraPass Global Edition1
- Order one model number to ensure you receive all hardware components at the same time
- Expand your system in 4-door increments using the Multi-Door Expansion Kit
(1) EntraPass Global Edition requires v3.17 or higher with Windows Global Gateway and KT-NCC.
