AVLELEC's "Do-it-yourself" kit includes everything needed for a simple installation and will effectively mask 900 to 1,000 square feet (expandable to 11k ft and beyond)
The self installation kit includes the following: (scroll down to add more speakers or additional zone amplifiers for Paging, or Soundmasking Music)

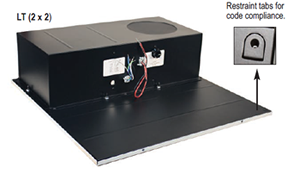

Four (4) AVL Soundmasking Speakers Our Premier Soundmasking & Music Speaker Assembly. 8" Dual Cone, 10oz Speaker Magnet, .25, .5, 1, 2 and 4 Watt Transformer Tap. 734 Cubic Inch Enclosure (for greater bass response). Mount Upward, Downward, Horizontal. Great for Soundmasking, Soundmasking Music, Clear Paging, Emergency Evacuation Life Safety Digital Recordings.
Shipped complete with installation drawings, required cable, wire nuts and speaker mounting hardware.
Add Soundmasking, Paging, Soundmasking Music Zones
Simple clean power 60 Watt single input power amp 1 Balanced or Unbalanced input 1 Unbalanced line output Loudness contour switch (+4dBu @ 100Hz and 10kHz)
Soundmasking / Paging Amplifier SMAP-A601 60 Watt Single Channel Power Amplifier
The PA601 is the perfect choice for distributed soundmasking background music (BGM) systems when the requirement is simple amplification without MOH or advanced mix functionality.
Model SMAP-A601, $ 322.75 Qty:
2 Stereo line inputs Pre Out/ Power in patch Remote and VOX activated Mute Route any source combination or entire mix bus to Zone 2 (MOH Out) Special Low Cut filter is 6dBu / octave at 400Hz and also bypasses front panel bass control to allow use with paging systems Dual line outputs 35 Watts of true output power for less money than most competitors 15 Watt models 1 Mic in w/phantom power

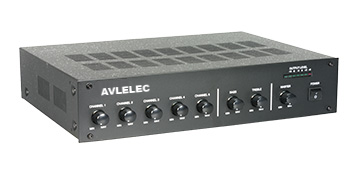

Soundmasking Amp SMA-35 35 Watt Three Input Mixer Amplifier
Ch.1 - Soundmasking Signal Input Ch.2 - Telephone Paging Input Ch.3 - Soundmasking Music Input (or Fire Alarm Chirp)
The AVL-SMA-35 is a 3 input channel mixer amplifier designed for distributed business paging, background music (BGM) and sound masking systems, small to medium speech privacy systems and in applications where music on hold (MOH) plus paging is required. Model SMA-35, $ 249.75 Qty:
Zone 2 MOH out from CH6 line source 120 Watt 6 channel mixer amplifier 5 Mic/Line inputs with phantom power and 1 stereo summing AUX input Remote or VOX mute capabilities Special Low Cut filter is 6dBu/octave at 400Hz and also bypasses front panel bass control to allow use with paging systems Bridge in/out circuit with balanced link / internal relay to engage circuit is perfect for small room combining systems eliminating the need for external electronics Pre out / power amp in for patching external processors
Soundmasking Amp SMA-120 120 Watt Six Input Mixer Amplifier
Literature Sheet
Installation Manual
AVL-SMA-120 amplifier is a powerful 120 Watt amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment. This 6 input unit features extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in zoned sound masking applications without the need for external relays. VCA control is included which may be assigned to the BGM input or globally for the entire amplifier.
Model SMA-120, $ 589.75 Qty:
Remote or VOX mute capabilities Special Low Cut filter is 6dBu/octave at 400Hz and also bypasses front panel bass control to allow use with paging systems VCA control assignable to input 6 line level (BGM) input or global for the mix bus Bridge in/out circuit with balanced link / internal relay to engage circuit is perfect for small room combining systems eliminating the need for external electronics Pre out / power amp in for patching external processors Zone 2 MOH out from CH6 line source 240 Watt 6 channel mixer amplifier 5 Mic/Line inputs with phantom power and 1 stereo summing AUX input

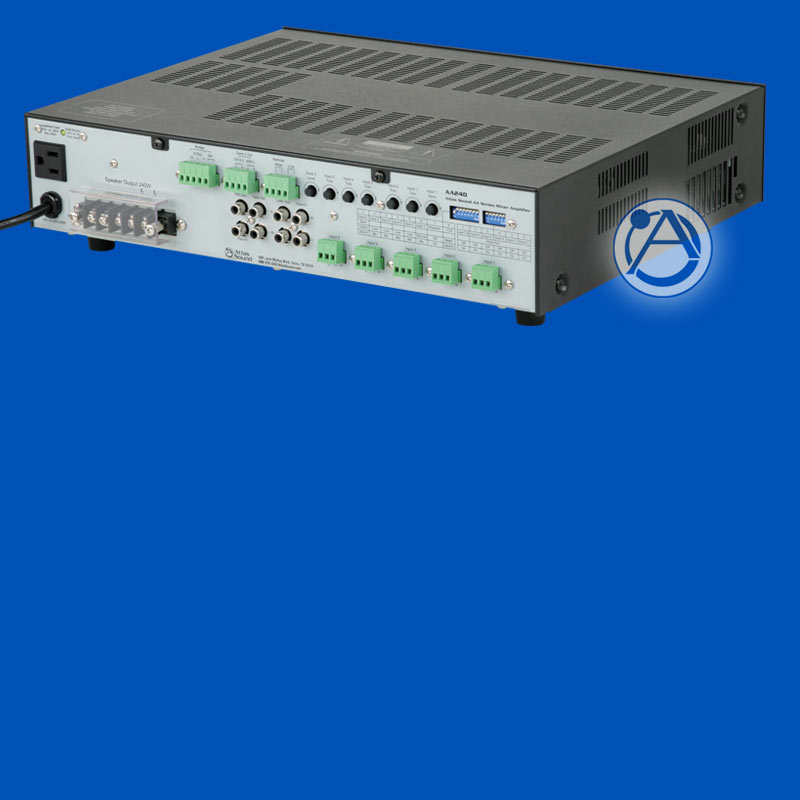

Soundmasking Amp SMA-240 240 Watt Six Input Mixer Amplifier
AVL-SMA-240 amplifier is a powerful 240 Watt amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment. This 6 input unit features extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. VCA control is included which may be assigned to the BGM input or globally for the entire amplifier
Model SMA-240, $ 759.75:
Two Zone Power Amplifier Model ZP-700 HIGH-PERFORMANCE, DUAL-CHANNEL, COMMERCIAL AUDIO AMPLIFIER
A professional grade audio power amplifier specifically designed for demanding contractor applications, the ZP-700 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 70.7V output through transformer) Now you can have the peace of mind that systems specified with the ZP-700 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.
ZP-700’s two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service.
Model ZP-700, $ 879.75:
Value Added Service (we provide the following at no additional cost) * AutoCAD Device Location Drawings (you provide the background) * * AutoCAD Point-to-Point Wiring Schematic * * All Speaker Cable, Plenum Rate * * Unlimited Telephone Support, Including 3 Engineers Home and Cell Phone No's *
